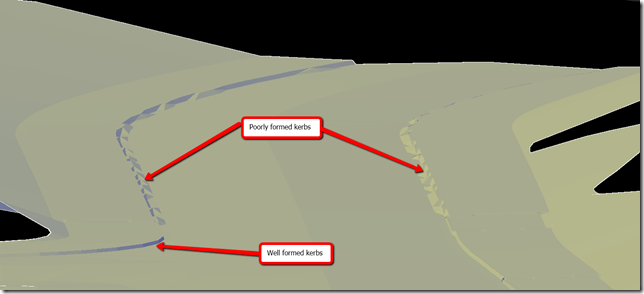

Sometimes your Curbs (or Kerbs) and Channels to do not triangulate well on a surface built from a corridor.
To clean up the kerbs you have to add the key Curb featurelines as breaklines to your corridor surface.

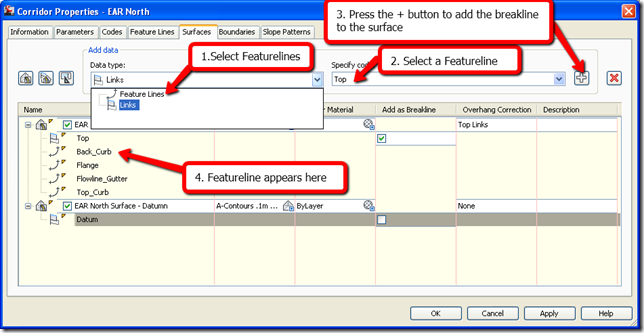

To do this goto the corridor surfaces tab and select the featurelines you want to add a breaklines
To clean up the kerbs you have to add the key Curb featurelines as breaklines to your corridor surface.
To do this goto the corridor surfaces tab and select the featurelines you want to add a breaklines
You don't have to add the other feature lines. I have had success for the last 4 years just adding the top links as breaklines. There is no reason to complicate the model more than necessary by adding additional feature lines.
